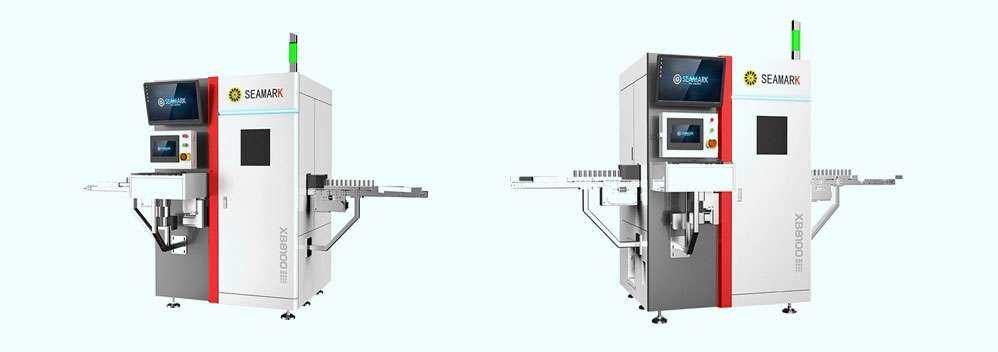

The XB8100 is specifically designed for cylindrical batteries with diameters ranging from φ14mm to φ46mm, catering to a wide range of inspection needs. It employs advanced area array sampling technology or TDI line scanning sampling technology, ensuring efficient and accurate inspections for multi-layer high-efficiency batteries of different diameters. The inspection parameters include aspects like angle overhang, resistance value, conductivity, among others, ensuring a comprehensive quality evaluation.
Features Of XB8100-Cylindrical Battery Inspection
Premium X-ray Technology
The XB8100 employs the globally acclaimed Hamamatsu X-ray tube, renowned for its precision. This ensures detailed inspections of winding batteries, guaranteeing top-quality performance.
Advanced Algorithm Integration
Seamark’s in-house algorithm software enhances XB8100’s capabilities. These sophisticated algorithms enable the machine to detect intricate battery details accurately, leading to precise quality assessments.
Dedicated Customer Support
Seamark provides unmatched customer assistance. Their skilled Research and Development (R&D) specialists and after-sales service team offer swift and effective solutions, ensuring smooth operation for businesses relying on the XB8100.
Specifications Of XB8100-Cylindrical Battery Inspection
| X-ray Tube Parameters | |
| Ray Tube Type | Reflective sealed micro-focus ray source |
| Tube Voltage Range | 110KV / 130KV |
| Tube Current Range | 455μA/300μA |
| Maximum Output Power | 50W/39W |
| Micro Focus Size | 5-15μm |
| Receiver Parameters | |
| Type | Flat panel detector/line array detector TDI |
| Field of View | 130mm*130mm/ 205mm*6mm |
| Resolution/pixel Size | 5.8Lp/mm 100μm |
| Ad Conversion Digits | 16bits |
| Efficiency Parameters | |
| Detection Efficiency | ≥90ppm/ ≥200ppm |
| Overkill Rate | ≤1.5% |
| Underkill Rate | 0.00% |
| Product Excellence Rate | ≥99.5% |
| Other Parameters | |
| International Radiation Safety Standards | ≤1usv/hr |
| Control System | Industrial computer Win10 (64-bit) |
| Equipment Size | 1300(L)×1660(W)×1900(H)mm5000(L)×1800(W)×1900(H)mm |
| Weight | 2500Kg4000Kg |
| Power Supply | 3-phase 380V/50HZ about 3000W3-phase 380V/50HZ about 4500W |
| Detection Range | 14450/18650/26650/32700/468014450/18650/26650/32700 |
