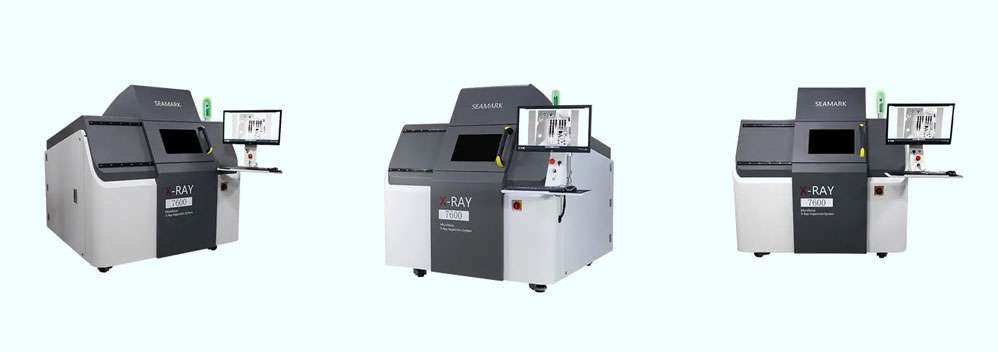

X7600 inspection machine adopts the world’s top Japanese Hamamatsu X-ray source. This industrial X-Ray machine can easily distinguish the semiconductor package gold wire bending, gold wire break, super large platform can load super large industrial control motherboard, super long LED light bar, suitable for various fields electronic products.
As one of the most reputable and reliable API manufacturing companies, Seamark will try its best to provide good products and services for you.
Features of X7600 Offline X-ray Inspection Machine
- Electronic manufacturing/semiconductor/photovoltaic/connector/LED, etc.
- High-definition inspection image: offset/connected tin/bubble/cold soldering/soldering wire.
- 130KV 5μm closed X-ray tube, long life, maintenance-free.
- 2.3 million high-resolution digital flat panel detector.
- 5 AXI X-ray linkage system.
- Observation at 60 degrees.
- 360 degree platform rotation.
- Color image navigation.
- Support picture stitching function (optional).
Upgradable 3D module (industrial CT) (optional).
Automatic test plan customization (optional).
As a professional x-ray inspection machine manufacturer in China, Seamark ZM is famous for its rich technical force, complete detection means, reliable quality, good service. If you want to know the exact industrial x-ray machine price and to get a perfect kind of repair machine for your factory, please contact Seamark ZM first.
Specification Of X7600 Offline X-Ray Inspection Machine
| X-Ray Tube Source Specification | Details |
|---|---|
| Type | Sealed Micro-Focus X-Ray Tube |
| Voltage | 90 KV (130KV optional) |
| Operating Current Range | 40-90KV/130KV |
| Operating Current Range | 10-200 μA/300μA |
| Max Output Power | 8 W/39W |
| Micro Focus Spot Size | 5-15μm |
| Flat Panel Detector Specification | Details |
|---|---|
| Type | CMOS Flat panel detector |
| Pixel Matrix | 1172×1100 |
| Field of View | 58mm×54mm |
| Resolution | 10.1Lp/mm |
| Frame（1×1) | 30fps |
| A/D Conversion Bit | 14bits |
| Dimensions | L850mm×W1000mm×H1700mm |
|---|---|
| Input Power | 220V 10A/110V 15A 50-60HZ |
| Max Sample Size | 500mm×500mm |
| Control System | Industrial PC WIN7/ WIN10 64bits |
| Net Weight | Approx 1900KG |
| Radiation | ＜1μSv/h |
| Max Tilt Angle | 65 degree |
